Improved Sample Preparation Productivity With Selective Extraction Using Accelerated Solvent Extraction

Tuesday, August 2, 2011

During any extraction process, interferences can also be extracted along with desired analytes. These unwanted coextractables can interfere with analyte detection or decrease instrument performance. Traditionally, chromatographic techniques such as gel permeation chromatography (GPC) or a glass column packed with specific adsorbents are used to purify sample extracts prior to separation and analysis.

Figure 1 - Extraction cell with flow-through design.

The Accelerated Solvent Extraction (ASE®) system (Dionex Corp., Sunnyvale, CA) uses elevated temperatures (up to 200 °C) to increase the kinetics of the extraction process while applying high pressures (1500 psi) to maintain the organic solvents in their liquid state. The sample is enclosed in a stainless-steel extraction vessel that is automatically filled with solvent and is then heated to the preset temperature under high pressures for a static period of time (5–10 min). Once the extraction is complete, the cell is flushed with fresh solvent and then purged with compressed nitrogen to dry the sample. The extraction solvent and analytes are delivered into a sealed collection vessel. The flow-through design of the ASE system facilitates selective removal of interferences during sample extraction, thus combining extraction and purification into a single step, as shown in Figure 1.

Figure 2 - Extraction of PBDEs from salmon with (extract on left) and without (extract on right) in-cell cleanup.

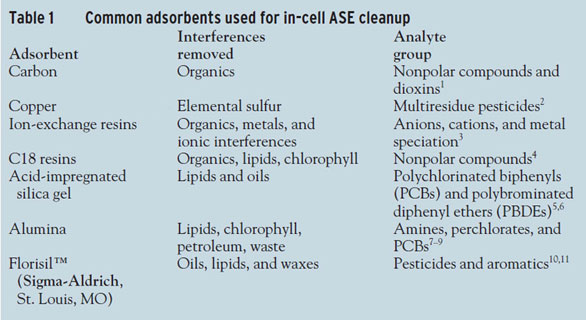

For example, adding alumina to the extraction cell before adding the sample or sample mixture has been shown to prevent the extraction of unwanted lipids. There are many different adsorbents that can be used in the extraction cell to remove a wide variety of interferences from the final extract. Table 1 lists common adsorbents that are used for selective extraction of compounds during an ASE extraction.

Figure 2 shows two extracts of 10-g samples of salmon tissue. The yellow extract was obtained using standard ASE conditions (hexane, 100 °C, 10 min) and without any sorbent in the extraction cell. The clear extract was obtained from a second sample extracted under the same conditions but with alumina and sulfuric acid-impregnated silica gel in the extraction cell. The GC-MS analysis of the clear sample showed that no lipids are present in the extract. The following examples illustrate other cases using the in-cell cleanup capability of ASE.

Selective extraction of PCBs from various fat-containing samples

Selective extraction of PCBs from fish meal samples using acid-impregnated silica gel5,6

Aliquots of fish meal samples (2 g) were ground together with sodium sulfate (2 g) and Ottawa sand (2 g) using a mortar and pestle. The sample mixtures were spiked with cod liver oil CRM 349. The spiked sample mixtures were added to an ASE extraction cell that contained layers of silica gel and acid-impregnated silica gel (see Figure 3). The samples were extracted automatically using the ASE system using 100% n-hexane at 100 °C with two cycles of 5 min each. The extracts were clear and required no postextraction cleanup steps. The clean extracts were concentrated to 1 mL and diluted to 2 mL with n-hexane and then analyzed using the GC-MS. The PCB recovery data can be found in references 5 and 6.

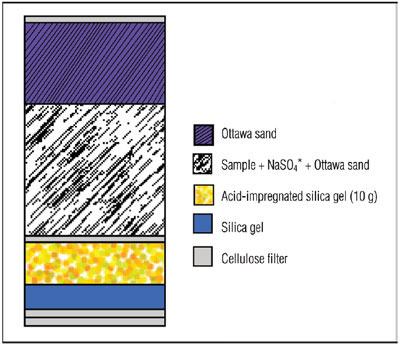

Figure 3 - Extraction cell configuration for selective extraction using silica gel.

Selective extraction of PCBs from fish tissue using alumina7

Aliquots (3 g) of fish tissue SRM (CARP-1 from the Canadian National Research Council) were ground together with sodium sulfate (15 g) using a mortar and pestle. These mixtures were transferred to ASE extraction cells containing a layer of alumina (see Figure 4). The samples were extracted automatically using the ASE system using 100% n-hexane at 100 °C with two cycles of 5 min each. The extracts were analyzed using the GC-ECD (electrochemical detection) technique. The chromatograms showed no evidence of lipids present in the extracts. The PCB recovery data are shown in Reference 7.

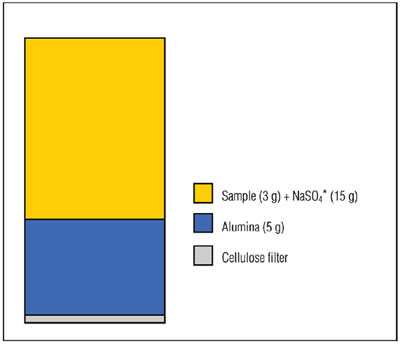

Figure 4 - Extraction cell configuration for selective extraction using alumina.

Selective extraction of PCBs from spoonbill eggs using Florisil10

Spoonbill egg samples were freeze-dried, and 2-g aliquots were spiked with 20 mL of a PCB standard solution containing 1.4 and 19 ng for low and high spike levels, respectively. Aliquots (2 g) of the spiked sample were ground with Florisil (1:2). These mixtures were added to an ASE extraction cell containing 6 g of Florisil. The samples were extracted automatically using dichloromethane (DCM):pentane (15:85, v/v) at 40 °C with two cycles of 10 min each. The extracts were analyzed using the GC-ECD technique. The results in Reference 10 compare recoveries using the ASE system with in-cell cleanup against Soxhlet extraction with postextraction cleanup with Florisil.

Conclusion

The flow-through design of the ASE system allows for in-line removal of unwanted coextractables from the final extracts, eliminating the need for a postextraction cleanup step. This ability, coupled with the speed of the extraction, makes the ASE system a powerful tool for total sample preparation.
